TG-PS-50-40 Thermal Grizzly PhaseSheet PTM, 50x40 mm - Thermal pad https://www.euronics.lv/en/it/it-accessories/other/tg-ps-50-40/thermal-grizzly-phasesheet-ptm-50x40-mm-thermal-pad https://www.euronics.lv/UserFiles/Products/Images/467433-708969.avif InStock 14.99 EUR

Thermal Grizzly PhaseSheet PTM, 50x40 mm - Thermal pad

Specifications
Thermal Grizzly PhaseSheet PTM, 50x40 mm - Thermal pad
  • Thermal Grizzly PhaseSheet PTM, 50x40 mm - Thermal pad
  • Thermal Grizzly PhaseSheet PTM, 50x40 mm - Thermal pad
  • Thermal Grizzly PhaseSheet PTM, 50x40 mm - Thermal pad
  • Thermal Grizzly PhaseSheet PTM, 50x40 mm - Thermal pad
  • Thermal Grizzly PhaseSheet PTM, 50x40 mm - Thermal pad
  • Thermal Grizzly PhaseSheet PTM, 50x40 mm - Thermal pad
  • Thermal Grizzly PhaseSheet PTM, 50x40 mm - Thermal pad
  • Thermal Grizzly PhaseSheet PTM, 50x40 mm - Thermal pad

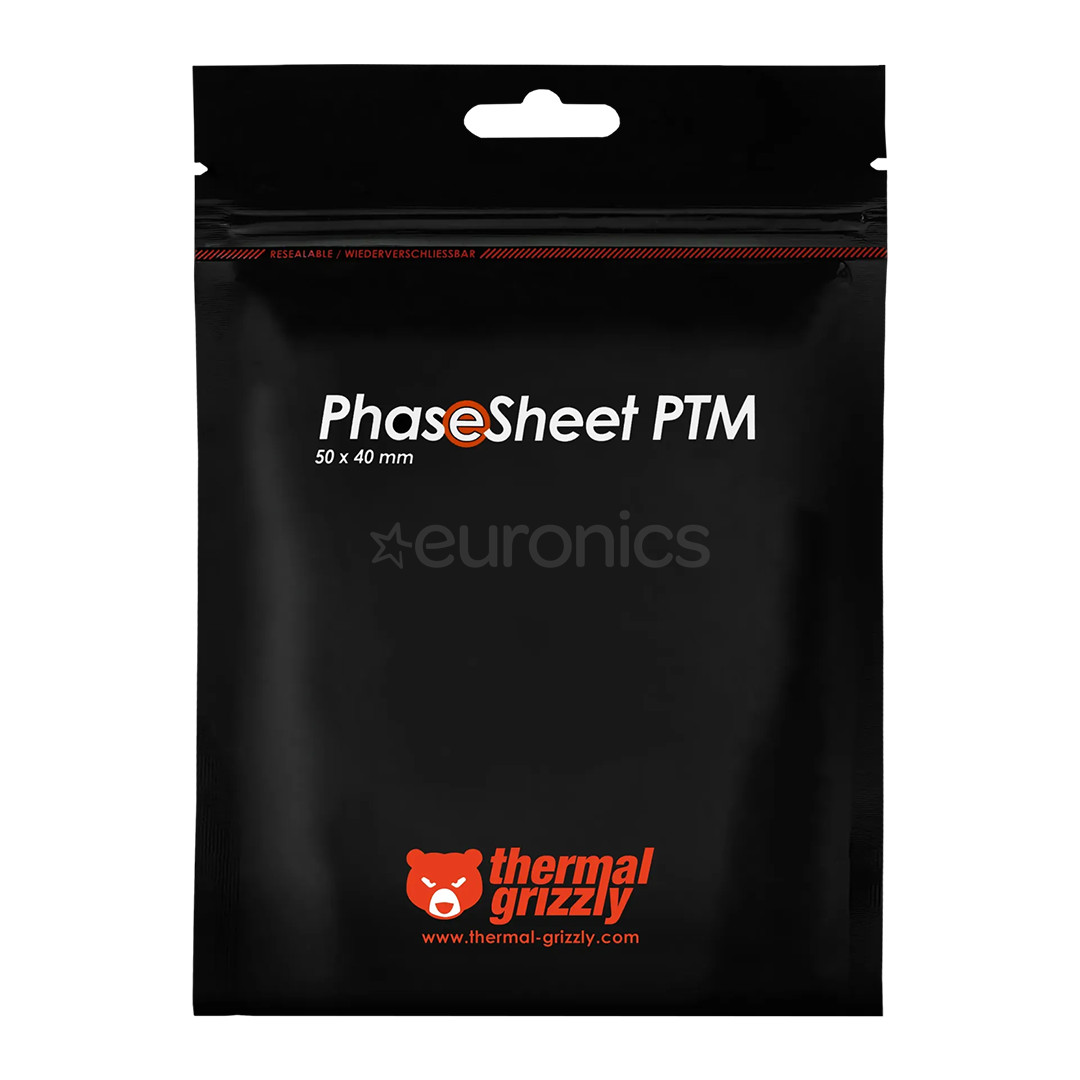

Thermal Grizzly PhaseSheet PTM, 50x40 mm - Thermal pad

Product code: TG-PS-50-40 Brand: Thermal Grizzly
14.99 €

Thermal Grizzly PhaseSheet PTM is a high-performance phase-change thermal pad designed primarily for processors and graphics chips. Solid at room temperature, it liquefies above 45°C to efficiently transfer heat like thermal paste while providing consistent performance and reducing the pump-out effect.

• 50 × 40 mm phase-change thermal pad
• Liquefies at temperatures above 45°C
• High and consistent thermal performance
• Minimises the thermal paste pump-out effect
• Electrically non-conductive for safer application
• Operating temperature from -75°C to +150°C

Read more

Price:
14.99 €

Product is available in e-shop only

Back

Shipping methods

Select the preferred shipping method in checkout.

  • Euronics shop delivery
    19. - 25. September
    0 €
    More info

    • 19. - 24. September

    • Akropole Alfa
    • Akropole Rīga
    • Imanta
    • Spice Life

    • 21. - 25. September

    • Euronics PickUp (Ieriķu iela 5B)
  • Delivery to post package terminal
    22. - 26. September
    2.99 €
    Fast and reliable way to receive small orders in any Omniva or DPD post package terminal.
  • Shipping indoors
    21. - 24. September
    7.99 €
    Option to add installation service, removal of packaging and removal of old product.
Shipping methods Select the preferred shipping method in checkout

Specifications

  • General Parameter

    manufacturer Thermal Grizzly

  • Dimensions

    width 0.5 cm
    depth 0.4 cm

Description

Reliable phase-change thermal interface

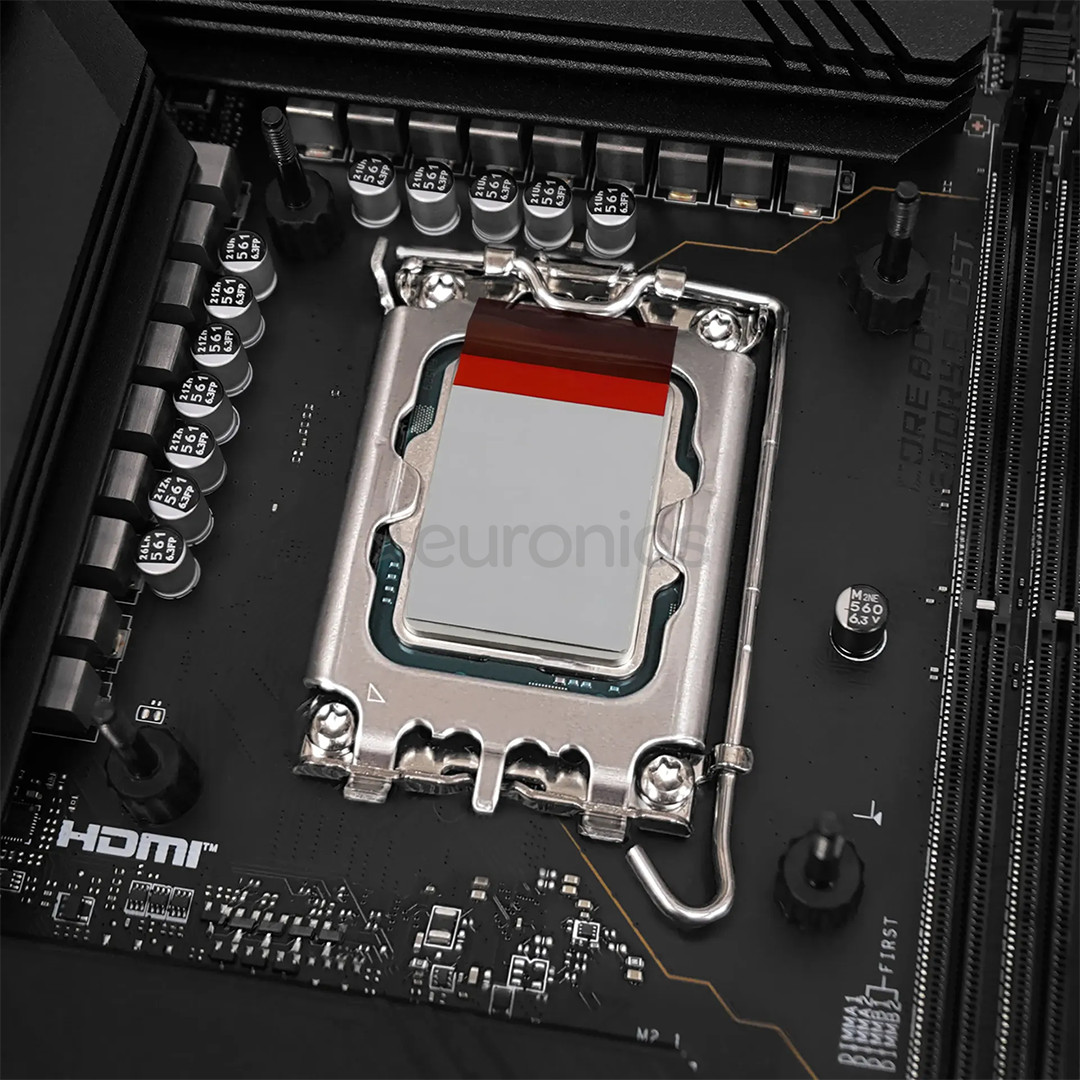

Thermal Grizzly PhaseSheet PTM is a phase-change thermal pad designed for efficient heat transfer between processors or graphics chips and their cooling solutions. Solid and easy to handle at room temperature, it begins to liquefy above 45°C and behaves similarly to thermal paste during operation, providing effective heat transfer, consistent performance, and long service life.


Phase-change technology

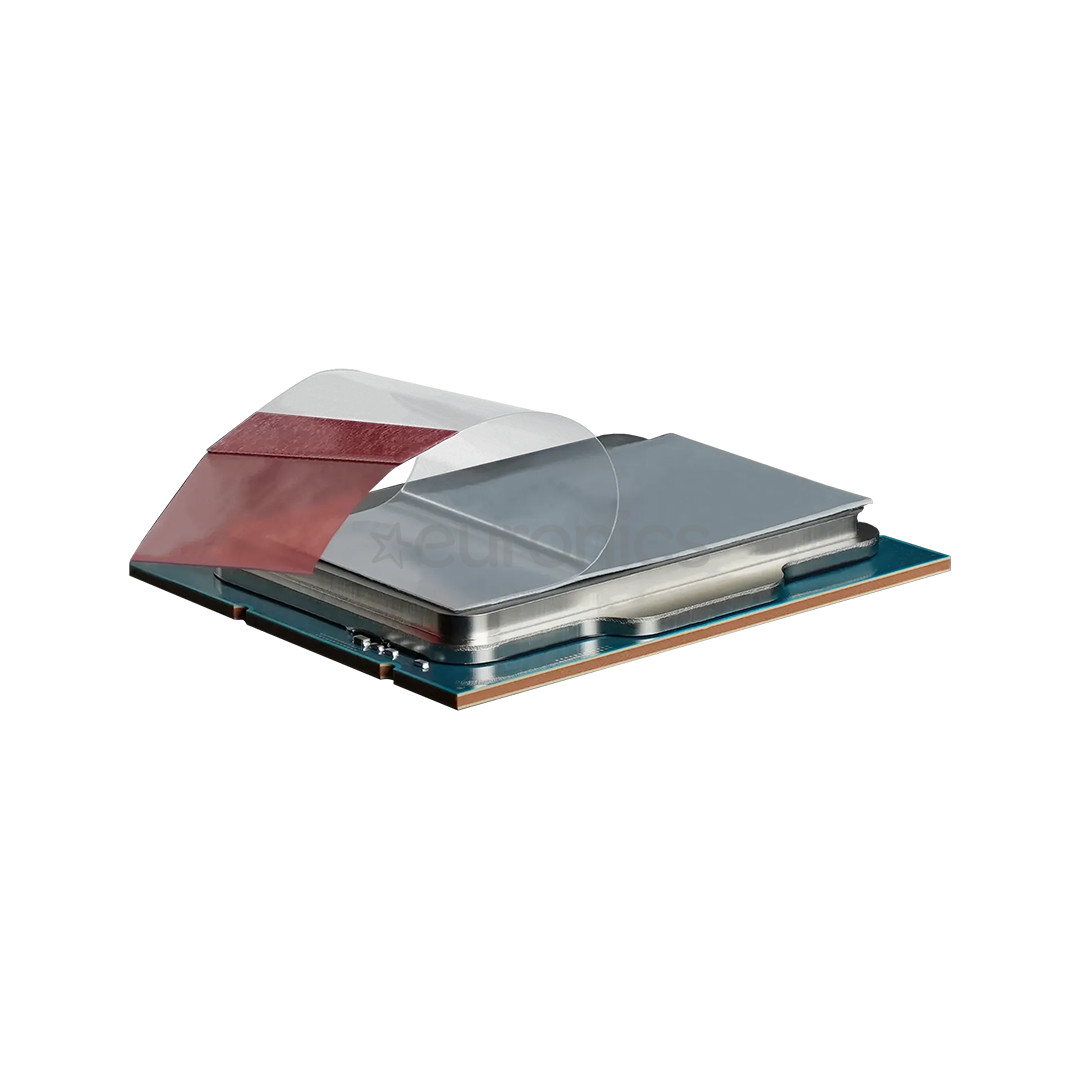

PhaseSheet PTM remains solid at room temperature for straightforward installation. Once the operating temperature rises above 45°C, the material begins to liquefy, allowing it to conform closely to the contact surfaces and efficiently transfer heat between the chip and cooler.


Consistent thermal performance
In its liquid state, PhaseSheet PTM has very low viscosity and contracts again as it returns to a solid state. This behaviour helps minimise the pump-out effect that can gradually push conventional thermal paste away from the contact area through repeated heating and cooling cycles.


Designed for long-term use
Compared with conventional thermal pastes, PhaseSheet PTM provides greater resistance to performance degradation caused by repeated thermal cycling. Its thermal conductivity reaches and stabilises at maximum performance after approximately ten thermal cycles above 60°C.


Electrically non-conductive
The material is electrically non-conductive, making it suitable for use around sensitive electronic components. Its primary applications include processors and graphics chips where reliable thermal transfer is required without the electrical conductivity associated with some high-performance thermal interface materials.


Optimised contact under pressure
For optimal distribution and the lowest possible interface thickness, the manufacturer recommends approximately 300–400 N of contact pressure. This allows the liquefied phase-change material to spread effectively across the contact surface during operation.


Wide operating temperature range
PhaseSheet PTM is designed to operate across a broad temperature range from -75°C to +150°C, making it suitable for a variety of demanding cooling applications and operating conditions.

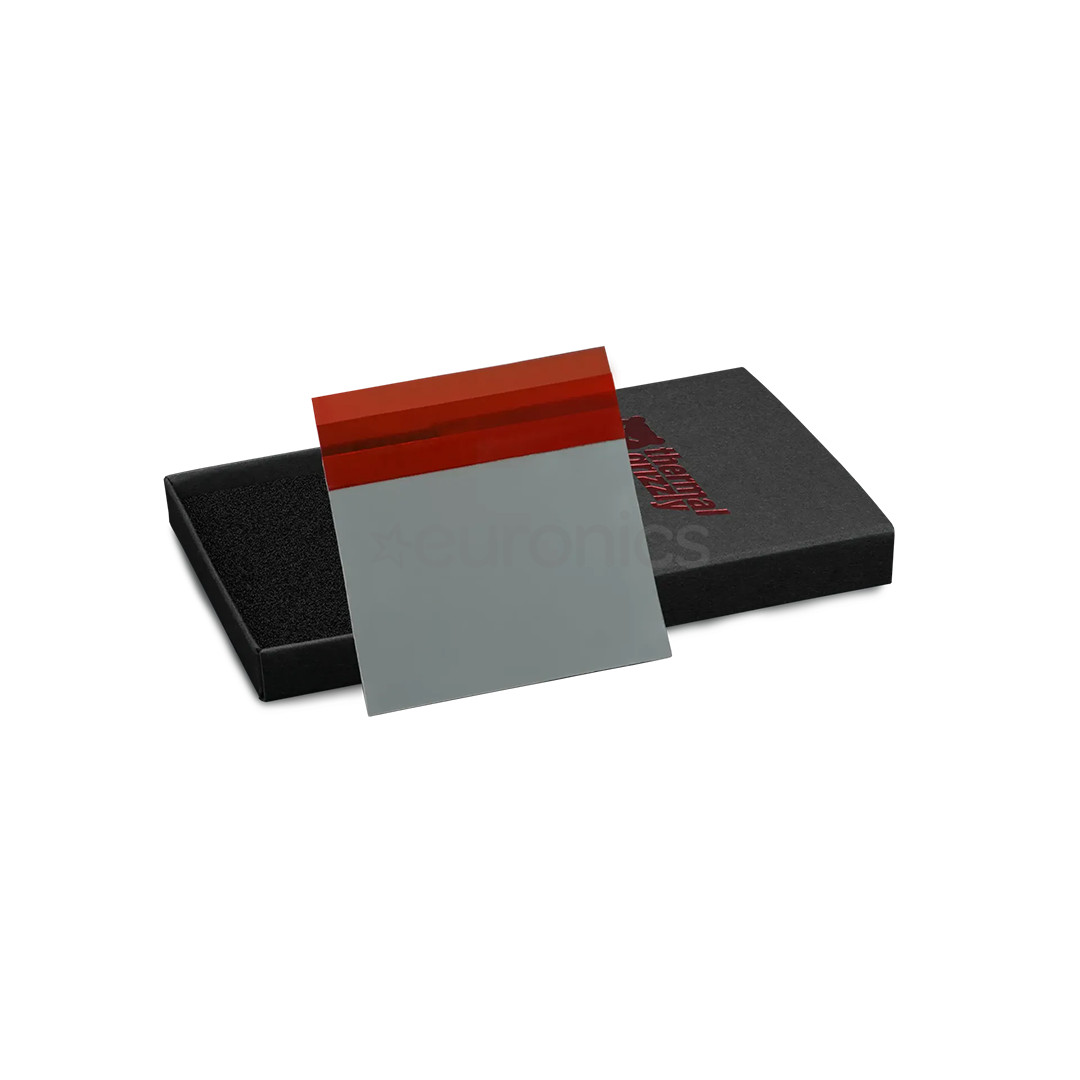

Ready-to-use 50 × 40 mm sheet
The 50 × 40 mm sheet provides 2000 mm² of phase-change material that can be applied between the heat source and cooling surface. Unlike conventional thermal paste, its solid state at room temperature makes positioning and installation straightforward before the cooler is mounted.
